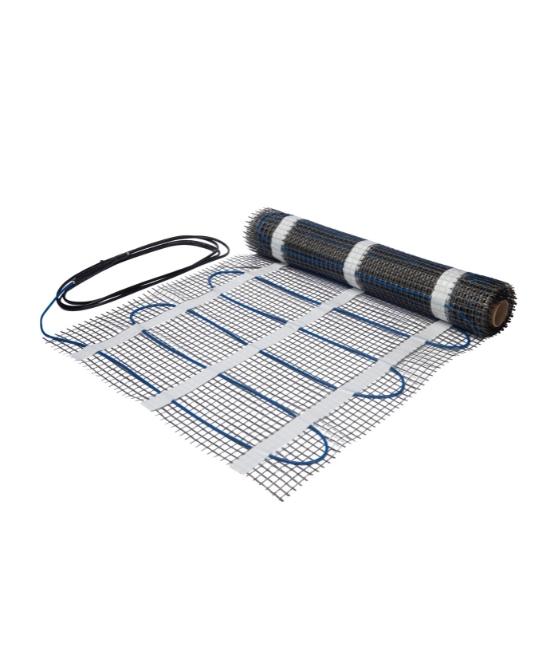

Sticky Floor Heating Mat
Sticky Floor Heating Mats (SFHM) are suited to generate heat underfloor, wooden or laminate floors in bathrooms, kitchens, entry-ways and sun rooms. Very thin product is what makes them ideally suited for renovation of homes, apart from green-field construction.
The ease of installation makes them an ideal DIY ‘Do-it-Yourself’ kit without technicians for planning their layouts. You can avoid spoiling the aesthetics of room with unsightly radiators or convector heaters, by using Sticky Floor Heating Mats
Application
SFHM comprise of flexible and robust fiber-glass mats / Textile mat that carry thin heating elements uniformly fixed on it. These elements are provided with primary high temperature polymer insulation, earth screen and sheathing of polyolefin (LSZH) / PVC / high temperature polymer as desired. Heating cables could be single conductor with approx. 2.2 mm outer diameter and terminating on cold leads are power cables at both ends of the mat or could be twin conductor with approx. 3.1 mm thickness and cold leads terminating at one end of the mat.
It is available in predetermined lengths with cold tail – prefabricated & tested in a carefully controlled factory environment.
| Technical Data | |
|---|---|
| Variants | Sticky Floor heating Mat / Textile Mat / Floor heating Mat. |
| Compliance | Standards: EN / IEC 60335, EN 62233, IEC 60800, VDE 0700, CSA – C22.2 No.130, UL1683. |
| Approvals | Intertek SEMKO, SGS Fimko, VDE, TUV, EAC & UL. |
| Cost-effective | Under floor heating provides heat where required, resulting in optimal heat utilization and minimal losses. |
| Comfort | Close and uniform spacing of heating cable, associated with thermostat controls to select temperature requirements, provides higher comfort levels. |
| Safety | Thermostats backed by optional over current protection and GFCI ensures total protection and safety. |
| Range | Standard range of heat loads available in 100 W/Sq.M, 150 W/Sq.M & 200 W/Sq.M. Also various sizes for different kinds / sizes of flooring available as per given product range. |
| Standard Wattage | 100 W/Sq.M, 150 W/Sq.M and 200 W/Sq.M , 230 V |
| Standard width of the mat | 500 mm. |
| Standard Cold lead length | 2.5 M. |
