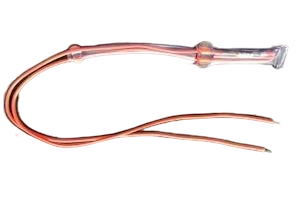

In these heaters resistance wire is spirally wound around a fiber core and enwrapped with electrical grade soft silicon rubber insulation. As the silicon insulation has high temp resistance these heaters provide a good temperature working range from – 40 to 150 deg C with Power density upto 40 watts/m. Being highly flexible, high temp resistance, good insulation resistance these heaters find wide application range of home appliances, medical treatment, health protection, cosmetology equipment etc. Since silicon insulation does not catches fire, it extinguishes fire by itself these heaters will not smoke or exit poison gas and can be used where strict fire proofing is required.
Application
These Heaters are widely used of home appliance for temperature requirement of 40 to 150 deg C as for defrosting in refrigerators/air conditioners, electrical cooker, towel heaters, electro thermal chair, doth racks, desks.
Heat Presevation and freezing resistance in medical treatment like thermal pads, thermal blankets, thermal blankets, thermal waist bands, galvanotherapyformet.
Defrosting and heating in air conditioning machines/compressor, pipes cans etc.
In planting and stock breeding, heat preservation in green houses, nurseries etc.
| Technical Data | |
|---|---|
| Rated Voltage | As per customer need ranging from 110 to 240 V AC/DC |
| Rated Wattage | As per customer need ranging from 5 to 500 watts and even more 10 - 20,000ohms/m |
| Temperature Range | -40 to 150 deg C. |
| Power Density | Maximum 30 to 40 watts/m |
| Length of the Heater | 200 to 10000mm |
| High Voltage resistance | 1800V for 5 sec. |
| Insulation resistance | 100 M ohms |
