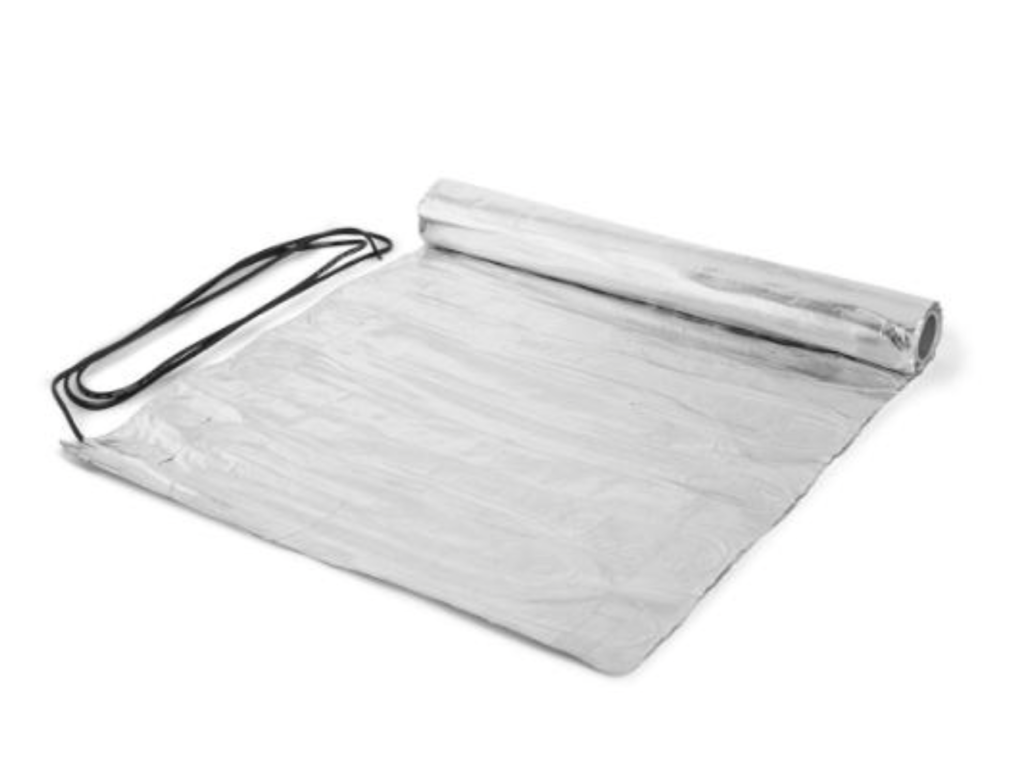

Laminate Floor Heating Mat
Thermo Laminate Floor Heating Mat is ultra-thin electric radiant floor heating system primarily for use under laminate, engineered wood, glued hardwood and other floating floors. Advantage of using Thermo Laminate Floor Heating Mat is the ease of installation and uniform heating of your laminate flooring. The special aluminum foil mesh facilitates uniform distribution of heating, making it free localized heating.
Application
Thermo Laminate Floor Heating Mat system is made with high temperature polymer insulated heating cables. These cables are sandwiched between two layers of specially reinforced aluminium foil. The uniform spacing of the heating elements, further backed by the aluminium foil, ensures even heat distribution. The heating element is connected to a power-supply cable, which exits the laminate mat from one corner. The power lead is a flat thin two core flexible cord, consisting of two insulated conductors with a earth screen and an outer sheath. Depending on your heating requirement, Thermo Laminate Floor heating mat is available in nominal heat outputs of 80 W/Sq.M and 140 W/Sq.M at 230V.
It is available in predetermined lengths with cold tail – prefabricated & tested in a carefully controlled factory environment.
| Technical Data | |
|---|---|
| Compliance | Standards:EN / IEC 60335, EN 62233, CSA – C22.2 No.130 , UL1683. |
| Approvals | Intertek SEMKO, EAC & UL against relevant standards. |
| User-Friendly | Ease of laying – the mat can be cut & turned to fit the room. |
| Comfort | Ultimate Warm Experience – Uniform Heating due to Aluminium Foil and Thermostat Control. experience. |
| Safety | Unique construction ensures 100% Earth Protection. |
| Range | A wide range of heat-loads and sizes ensure suitability to different sizes / kinds of floorings. |
| Standard Wattage | 80 W/Sq.M and 140 W/Sq.M, 230 V. |
| Standard width of the mat | 500 mm. |
| Standard Cold lead length | 3.0 M. |
